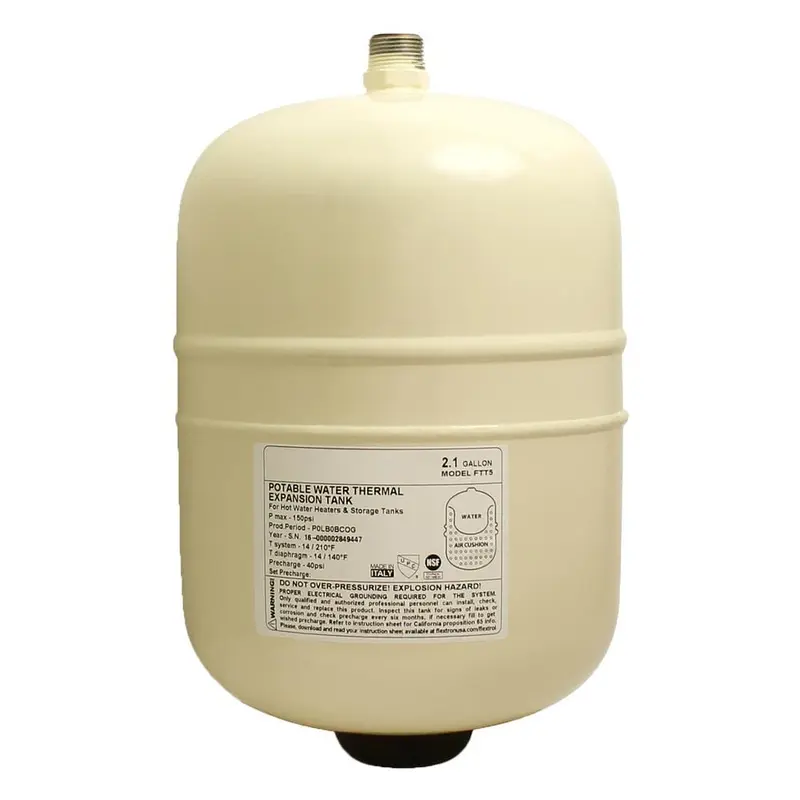

2.1 Gal. Potable Hot Water Heater Thermal Expansion Pressure Tank6 / each

Thermal Expansion Tanks are designed for pressure control in potable water systems. The tank uses compressed air to maintain system pressures by accepting and expelling the changing volume of water as it heats and cools. It prevents the water heater pressure relief valve from opening, saves energy and eliminates a potential safety hazard. It is commonly installed in a domestic hot water system that contains a backflow preventer, a check valve or a pressure reducing valve. Measures: 11 in. L x 7.9 in. W x 11 in. H with 2.1 Gal. tank size, 6 lbs. weight and 3/4 in. connection size (NPT).

• Protected pre-charge valve eliminates potential leak path
• Prevents dangerous pressure build up, protects household appliances and fixtures
• External baked epoxy-polyester coating provides a durable appliance finish
• Exclusive polypropylene liner eliminates internal corrosion
• MIG welding eliminates interior rough spots and sharp edges
• All tanks are NSF61 certified
• Each tank is factory leak tested
• 150 PSI maximum pressure rating
• Maximum operating pressure: 150 PSI
• Operating temperature: 210F
• Factory pre-charge: 40 psi
• Shell: carbon steel
• Connection: stainless steel
• Diaphragm: butyl
• Color: almond
• 1 Year Warranty

Features
