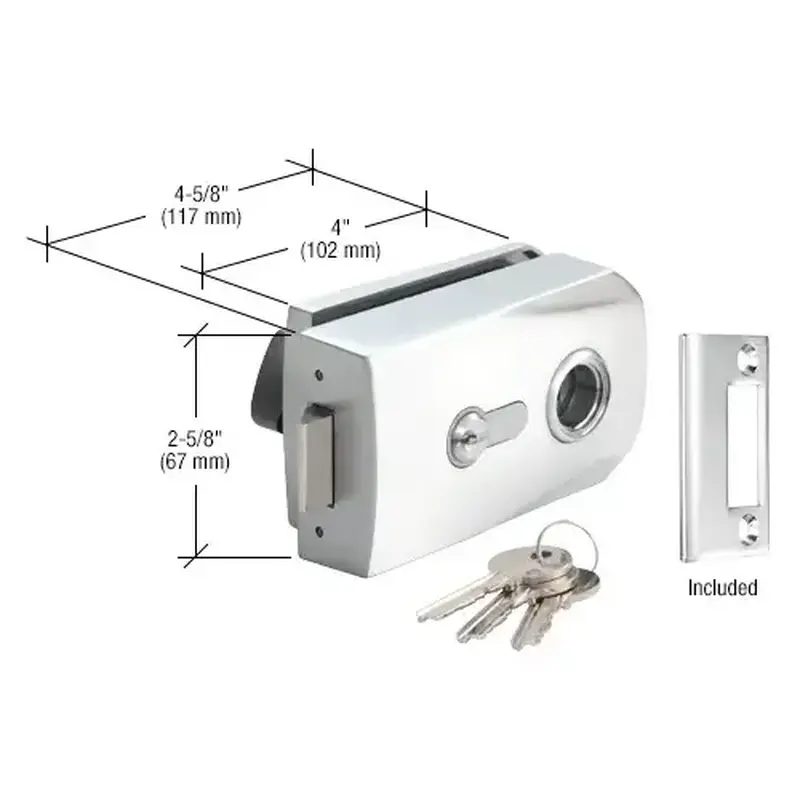

CRL PTH310PS Polished Stainless Glass Mount Lever Lock for Metal Frame Doors

• Use Monolithic Tempered Glass
• For 3/8″ or 1/2″ (10 or 12 mm) Glass Doors
• Slimline Design
• Works on Single Acting Doors

Finish

Polished Stainless

Material

Stainless Steel

Height

2-5/8

Glass Mounting Holes Diameter (Inches)

1-3/4

Glazing Thickness

3/8 or 1/2

Length

4-5/8

Finish/Color

Polished Stainless Steel

Series

Slimline

Glass Mounting Holes Diameter

1-3/4 in. (44 mm)

Product Overview
The CRL Glass Mounted Latch is used when door is closed into a frame.
NOTE: Handle is sold separately.
GLASS FABRICATION REQUIRED:
Two 1-3/4″ (44.5 mm) Holes
COMES WITH:
EC3 and EC4 Series, Cylinder/Thumbturn with 3 keys each, Template, and Instructions.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
