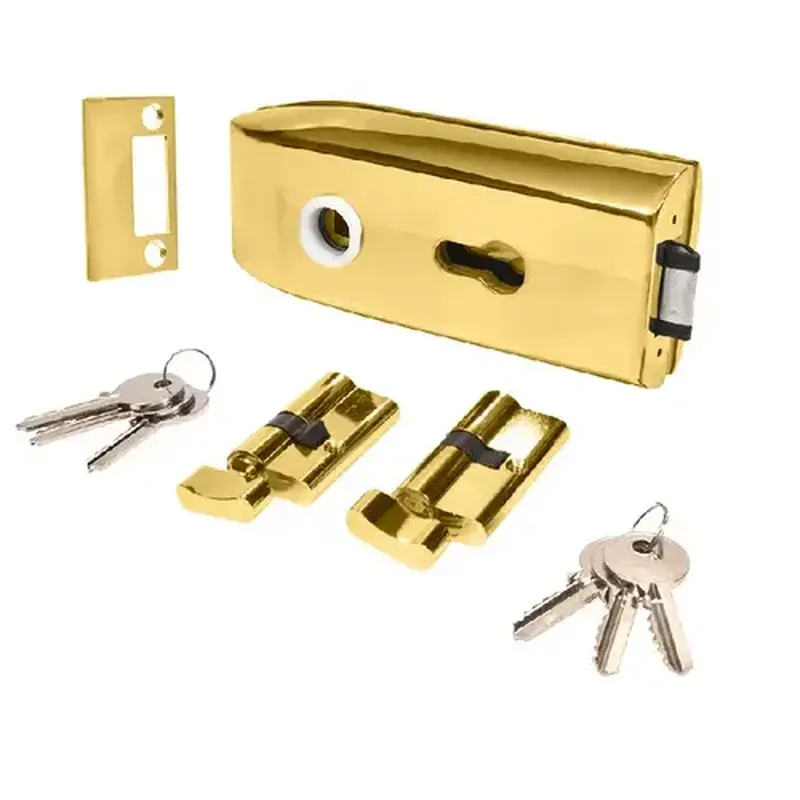

CRL PTH311BR Polished Brass Glass Mounted Latch With Lock and Thumbturn

• Use Monolithic Tempered Glass
• 304 Grade Stainless Steel
• Field Reversible
• For 3/8″ or 1/2″ (10 or 12 mm) Monolithic Tempered Glass
• Lever Handles Ordered Separately
• Works on Single or Double Doors

Finish

Polished Brass

Height

2-7/8

Glass Mounting Holes Diameter (Inches)

1-7/8

Glazing Thickness

3/8 or 1/2

Length

6-7/8

Material

304 Grade Stainless Steel

Finish/Color

Polished Brass

Glass Mounting Holes Diameter

1-7/8 in. (48 mm)

Product Overview
The CRL PTH311 Glass Mounted Latch comes assembled for use with the EC4 Keyed Cylinder on all outswing and on inswing doors without a PTH314 Glass Mounted Latch Keeper. When used on inswing door with PTH314, the EC3 Extended Length Keyed Cylinder must be used.
NOTE: When used on double door applications, the door with the keeper should be secured in place with a lock at the bottom of the door.
GLASS FABRICATION REQUIRED:
Two 1-7/8″ (48 mm) Holes
COMES WITH:
EC3 and EC4 Series Cylinder/Thumbturn with 3 Keys, Template, and Instructions.
Product Warning:
Lever Handles Ordered Separately

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
