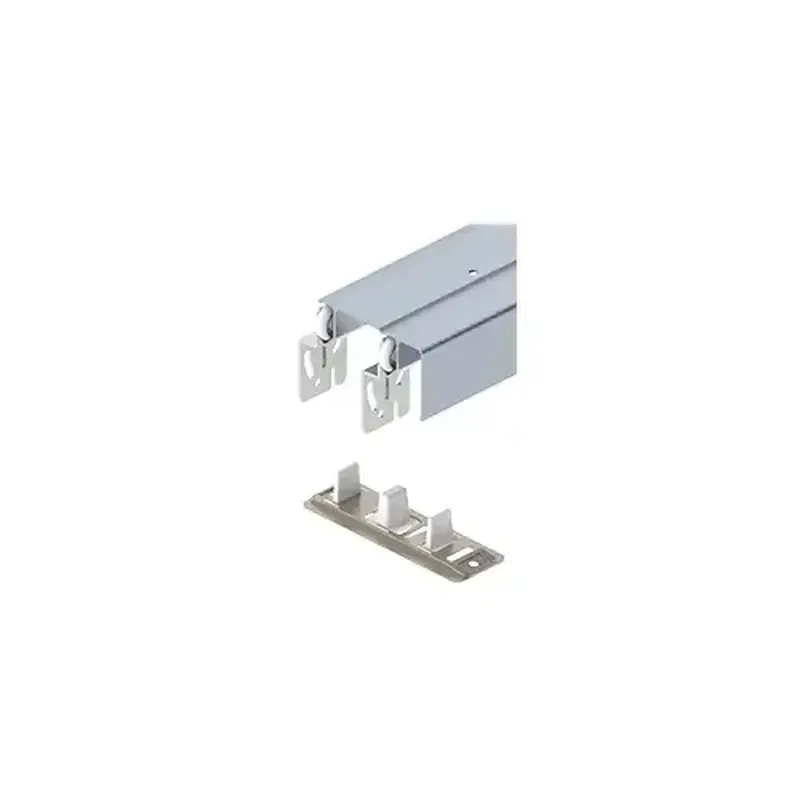

Hager 002655 9614 BY-PASS RS 72" MIL Mill Aluminum

Maximum Door Weight

60 lbs. per door with single wheel hanger

Notes

• Track is extruded aluminum with “V” shaped rails
• Grooved fascia

Packaged Sets

• 9614RS-48: 48″ (1219mm) for two 24″ (610mm) doors
• 9614RS-60: 60″ (1524mm) for two 30″ (762mm) doors
• 9614RS-72: 72″ (1829mm) for two 36″ (914mm) doors
• 9614RS-96 = 96″ (2438mm) for two 48″ (1219mm) doors

Includes

• Aluminum track with fascia
• 1-Wheel Hangers (4)
• Flush Cup Pulls (2)
• Floor Channel Door Guide (1)
• Parts Bag

Available Sizes

• 9614RS-48 = 48″ (1219mm)
• 9614RS-60 = 60″ (1524mm)
• 9614RS-72 = 72″ (1829mm)
• 9614RS-96 = 96″ (2438mm)

SLIDING DOOR TRACK LENGTH in.

72

Door Thickness

3/4″ – 1-3/8″

Maximum Door Thickness

Door thickness 3/4″-1-3/8″

Product Overview By-Pass Packaged Set
Applications:

• Commercial
• Healthcare
• Hospitality
• Office
• Residential

Notes:

• Track is extruded aluminum with “V” shaped rails
• Grooved fascia

Optional Features:
Optional Soft-Close (1-269-8651) for doors up to 150 lbs.
Certifications:

• Meets performance requirements ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles
• Type D02411-60
