Hager 027865 9852HD, 80", 250 LB, 2X6, HEAVY DUTY POCKET KIT

Door Thickness

For doors 1-3/8″ – 1-3/4″ (35 mm – 44 mm ) thick

Maximum Door Weight

250 lbs. (113 kg)

Installation

• For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately)
• Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width

Available Sizes

9852HD-80″ 9852HD-84″

Notes

See Related Files for additional information.

Door Specifications

For doors up to 3’0″; (914 mm) wide and 6’8″ (2032 mm) high

SLIDING DOOR HEIGHT in.

80

SLIDING DOOR WIDTH in.

36

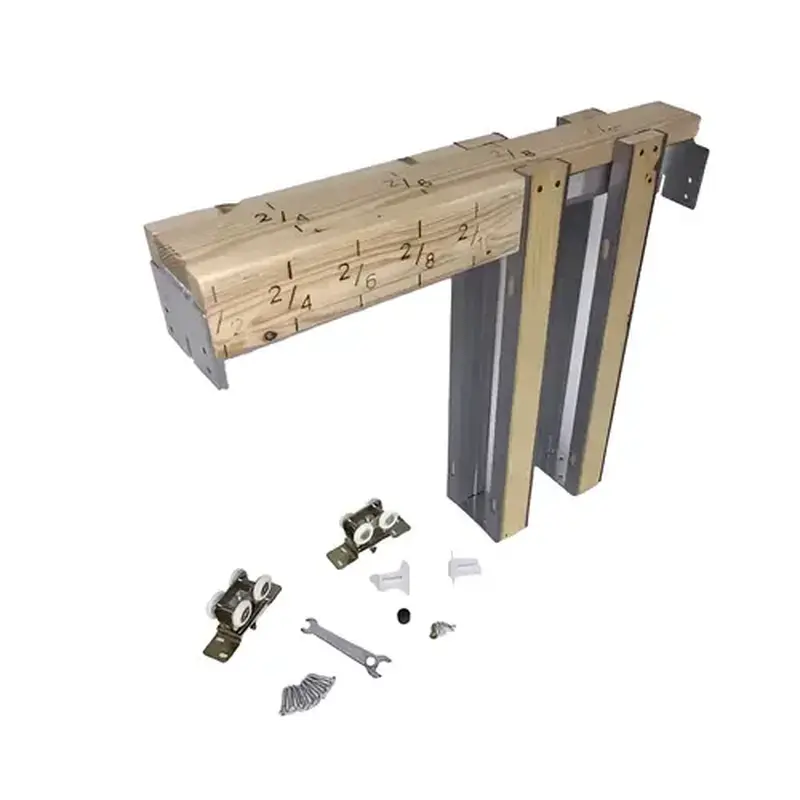

Product Overview
Specifications:

• Heavy-Duty, V-groove, jump-proof aluminum track
• Pre-assembled header assembly goes up quickly
• Easy door installation and removal for painting and repair
• 3 pair of wood split studs with wood inserts – size 3/4″ (19 mm) x 1-5/8″ (26 mm) length relative to height
• Steel encased for rigidity and to prevent fastener penetration into the pocket
• Track header unit attaches to rough framing at both ends
• Split studs can be nailed or screwed to track header

Applications:
For 2″ x 6″ walls
Notes:
See Related Files for additional information.
Certifications:

• Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation.
• Type: D02311-250
• ADA Compliant

Options:
Soft Close mechanism (1-269-8651) is available, sold separately.
