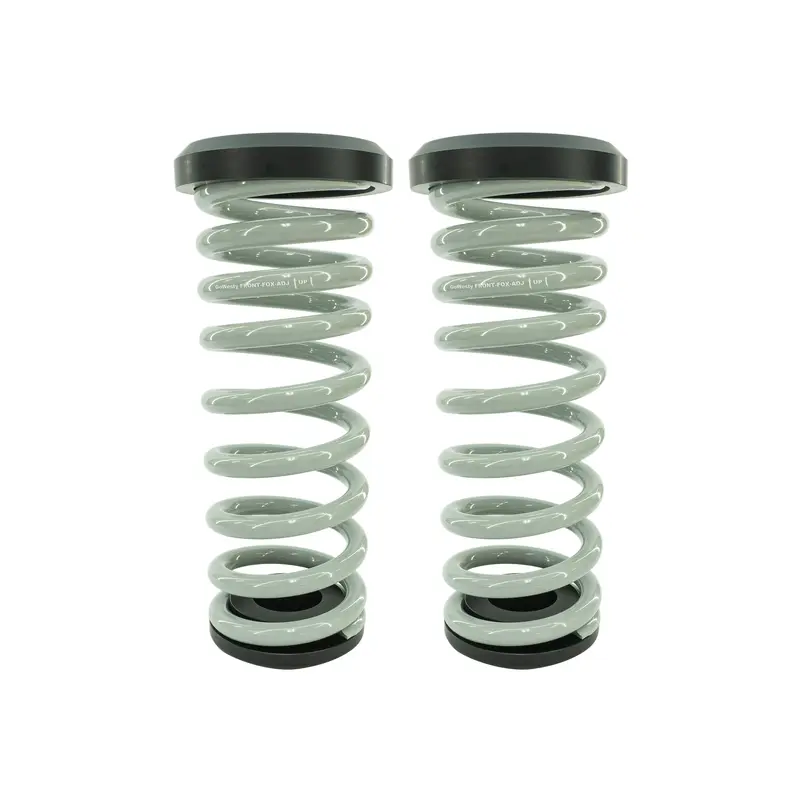

High Clearance Spring Bundle (Front) [Syncro]

Buy this bundle if you already have our Fox Shocks and want to update your front springs.

This high clearance spring and perch bundle includes new Delrin upper perches (to replace your worn out original rubber upper spring pad) and new black anodized aluminum lower perches. It is the perfect spring and perch bundle for any Syncro with GoWesty Fox shocks, but especially ideal for our long-travel front shocks. Working with our American spring manufacturer, we made a spring with a smaller overall outside diameter but maintained the same dual spring rates as our other springs that we know to give exceptional ride quality and traction on and off road.

Why else do I need these?

First, our adjustable, remote-reservoir Fox Shocks for Syncro include an extra inch of down travel, a little change which makes a huge difference in performance on a lifted van. But this extra down travel can bring the upper control arm and ball joint uncomfortably close to the spring. Setting up standard-size springs to dodge the Upper Control Arm (UCA)was alwaysa finicky process. Even when done properly there were circumstances where the UCA just contacts the spring, which can make an annoying clunking sound. This high-clearance spring bundleeliminates that interference problem all together. Second,these smaller diameter coilsfeature flat-ground ends which makesinstallation and ride height adjustment significantly easier.

Looking for max lift? If youplan tolift the front of your van more than 1″, we recommend also purchasing our Upper Ball Joint Spacer Kit to correct your alignment.

Note: The springs and perches in this bundle will only fit our front Fox shocks for Syncro, and the perches will not accommodate other springs.

works with:1984 Vanagon
