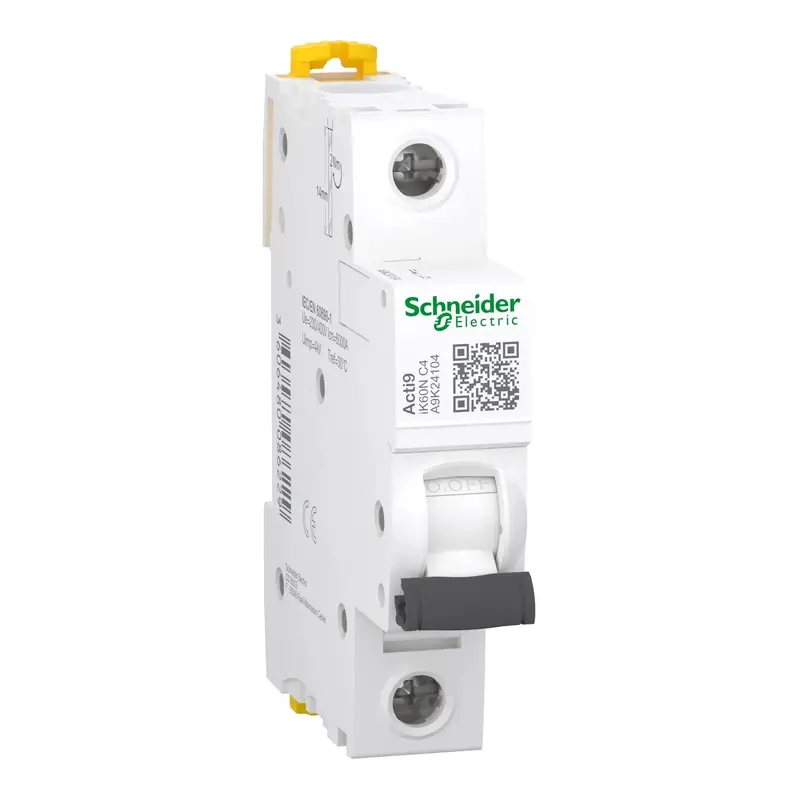

Schneider iK60N Circuit Breaker 4A

Reliable 4A circuit breaker with IEC compliance, offering robust protection and easy installation.

The Schneider Electric iK60N miniature circuit breaker is a robust and reliable solution for electrical protection. It is designed to handle overload and short circuit conditions with a breaking capacity of 6000A. Compliant with the IEC/EN 60898-1 standard, this 1P circuit breaker provides 4A rated current with a C curve, making it suitable for various residential and commercial applications. The compact design ensures easy installation on DIN rails, and it supports up to 230VAC operational voltage with 440VAC insulation voltage. The product’s durability is backed by electrical endurance of up to 10,000 cycles and mechanical endurance up to 20,000 cycles, ensuring long-lasting performance. With features like top or bottom electrical feeding and a double clip for secure mounting, the iK60N series offers enhanced safety and flexibility. This circuit breaker is part of Schneider’s Acti9 range, known for its modular design and high performance.

Key Features

• IEC/EN 60898-1 compliance
• 6000A breaking capacity
• DIN rail mounting
• Top or bottom feeding
• Double clip secure mounting

Technical Specifications
